    YiKES A different type of aluminum in a vaccine ??? nano ???

    listen to this video, please
    (3 minutes)


    Attached Files:

    CULCULCAN, Jul 14, 2021
    #1
  2. CULCULCAN

    CULCULCAN The Final Synthesis - isbn 978-0-9939480-0-8 Staff Member

    Messages:
    55,226

    Attached Files:

    • alum.pdf
      File size:
      559.7 KB
      Views:
      91
    CULCULCAN, Jul 15, 2021
    #2
  3. CULCULCAN

    CULCULCAN The Final Synthesis - isbn 978-0-9939480-0-8 Staff Member

    Messages:
    55,226
    CULCULCAN, Jul 15, 2021
    #3
  4. CULCULCAN

    CULCULCAN The Final Synthesis - isbn 978-0-9939480-0-8 Staff Member

    Messages:
    55,226
    STORED INFO #3 - ALUM.WEBPAGE

    PMC

    US National Library of Medicine
    National Institutes of Health
    Search database PMC All Databases Assembly Biocollections BioProject BioSample BioSystems Books ClinVar Conserved Domains dbGaP dbVar Gene Genome GEO DataSets GEO Profiles GTR HomoloGene Identical Protein Groups MedGen MeSH NCBI Web Site NLM Catalog Nucleotide OMIM PMC PopSet Protein Protein Clusters Protein Family Models PubChem BioAssay PubChem Compound PubChem Substance PubMed SNP SRA Structure Taxonomy ToolKit ToolKitAll ToolKitBookgh
    Search term
    clear.
    Search
    COVID-19 Information
    Public health information (CDC)
    Research information (NIH)
    SARS-CoV-2 data (NCBI)
    Prevention and treatment information (HHS)
    Español

    Try out PMC Labs and tell us what you think. Learn More.
    logo-hhspa.
    J Inorg Biochem. Author manuscript; available in PMC 2010 Feb 10.

    Published in final edited form as:
    J Inorg Biochem. 2009 Nov; 103(11): 1555.
    Published online 2009 Aug 20. doi: 10.1016/j.jinorgbio.2009.05.019
    PMCID: PMC2819810
    NIHMSID: NIHMS171746
    PMID: 19740540
    Aluminum hydroxide injections lead to motor deficits and motor neuron degeneration

    Christopher A. Shawa,b,c,* and Michael S. Petrikc
    Author information Copyright and License information Disclaimer

    The publisher's final edited version of this article is available at J Inorg Biochem
    See other articles in PMC that cite the published article.

    Go to:
    Abstract

    Gulf War Syndrome is a multi-system disorder afflicting many veterans of Western armies in the 1990–1991 Gulf War. A number of those afflicted may show neurological deficits including various cognitive dysfunctions and motor neuron disease, the latter expression virtually indistinguishable from classical amyotrophic lateral sclerosis (ALS) except for the age of onset. This ALS “cluster” represents the second such ALS cluster described in the literature to date. Possible causes of GWS include several of the adjuvants in the anthrax vaccine and others. The most likely culprit appears to be aluminum hydroxide. In an initial series of experiments, we examined the potential toxicity of aluminum hydroxide in male, outbred CD-1 mice injected subcutaneously in two equivalent-to-human doses. After sacrifice, spinal cord and motor cortex samples were examined by immunohistochemistry. Aluminum-treated mice showed significantly increased apoptosis of motor neurons and increases in reactive astrocytes and microglial proliferation within the spinal cord and cortex. Morin stain detected the presence of aluminum in the cytoplasm of motor neurons with some neurons also testing positive for the presence of hyper-phosphorylated tau protein, a pathological hallmark of various neurological diseases, including Alzheimer's disease and frontotemporal dementia. A second series of experiments was conducted on mice injected with six doses of aluminum hydroxide. Behavioural analyses in these mice revealed significant impairments in a number of motor functions as well as diminished spatial memory capacity. The demonstrated neurotoxicity of aluminum hydroxide and its relative ubiquity as an adjuvant suggest that greater scrutiny by the scientific community is warranted.
    Keywords: Aluminum hydroxide, Adjuvant, Neurotoxicity, Gulf War Syndrome, Amyotrophic lateral sclerosis
    Go to:
    1. Introduction

    Various studies have established a correlation between Gulf War service (1990–1991) and a multi-system disorder commonly termed Gulf War Syndrome. Included in GWS are various neurological disorders, including an apparent cluster of cases of amyotrophic lateral sclerosis [1–4]. Haley [3] described classical ALS symptoms such as muscle weakness and wasting, impaired speech and swallowing, difficulty in breathing, and fasciculation in Gulf War veterans years after they first developed other symptoms of GWS. Seventeen of the 20 servicemen diagnosed with Gulf War illness and definite ALS were less than 45 years of age with the youngest of these 20 years old. All 20 of these patients presented with signs of upper (motor cortex or bulbar region) and lower (spinal cord) motor neuron degeneration. None of these patients had a family history of ALS or of other neurodegenerative disorders. Horner et al. [2] conducted a nationwide case study performed to identify incidence levels of ALS for the decade after August 1990 amongst active duty members of the military. One hundred and seven confirmed cases of ALS were identified from approximately 2.5 million eligible military personnel. When standardized to the average 1990 US general population, the average annual incidence of ALS among non-deployed military population was 1.4 per 100 000 persons per year compared to the generally accepted overall population incidence of 1.5 cases of ALS per 100 000. The incidence rate of ALS among the deployed military population was 3.6 per 100 000 persons/year. Weisskopf et al. [4] noted a general increase in ALS in US military populations going back a number of decades regardless of the conflict.
    ALS–GWS is one of only two ALS disease clusters currently accepted as satisfying the definition of a cluster. The other is the Guamanian variant of ALS first described after World War 2 termed amyotropic lateral sclerosis parkinsonism dementia complex (ALS–PDC). This spectrum of disorders, once present with an incidence levels hundreds of times higher than in the continental United States [5] (see Kurland, 1988, for review), expressed in one of two ways. The first was as a nearly classical form of ALS; the second was a form of parkinsonism associated with an Alzheimer's disease-like dementia (PDC). About 10% of the victims developed both disorders, with the ALS phenotype typically appearing first. Studies into potential etiologies focused on environmental factors with most attention eventually directed at the consumption of toxin-containing seeds of the local variety of cycad palm [6] and the presence of high aluminum in the soil on southern Guam [7].
    In regard to the GWS-ALS AVA vaccine, attention has recently been directed at the anthrax vaccine adsorbed (AVA) and various vaccine ingredients, in particular the known and suspected adjuvants, aluminum hydroxide and squalene [8]. An adjuvant is a substance added during vaccine production designed to non-specifically increase the immune response to an antigen [9]. Aluminum compounds were first identified as adjuvants over 90 years ago. Currently aluminum, in various forms (aluminum hydroxide, aluminum phosphate and aluminum sulfate), is the most commonly licensed adjuvant whose use is generally regarded by both the pharmaceutical industry and the various governmental regulatory agencies as safe [10]. Various studies have found no adverse or long-term health effects due to aluminum adjuvants [11–13] and the Food and Drug Administration (FDA) has continued its longstanding approval for the use of aluminum in this fashion.
    In spite of the long history of widespread use, the physicochemical interactions between aluminum compounds and antigens are relatively poorly understood and their underlying mechanisms remain relatively unstudied [14]. It also seems that there have been no rigorous animal studies of potential aluminum adjuvant toxicity. The absence of such studies is peculiar given the well known observation that aluminum in general can be neurotoxic under a number of conditions [15,16] and adjuvants in particular have previously been implicated in neurological disease [17–19]. Table 1 shows the results from previous studies that treated animals with aluminum hydroxide, listing the resulting impacts on the nervous system. In context to the use of aluminum in vaccines, LD50 values for aluminum hydroxide have not been published to date to the best of our knowledge (J.T. Baker Material Safety Data Sheets).
    Table 1

    Summary of human ALS and GWI symptoms compared with symptoms observed in aluminum-treated mice and rats. This table also outlines the similarities between human ALS and Gulf War illness.
    Animal​
    Age​
    Dose​
    Injection type​
    Result​
    Reference​
    Female NIH mice​
    4 week​
    315–335 μg/kg​
    i.p.​
    Significantly elevated levels of Al in brain​
    Redhead et al., 1991​
    Male and female Long Evan rats​
    2 month​
    100 or 300 mg/kg/day​
    Oral​
    Significantly reduced learning ability and elevated levels of Al in brain​
    Male Swiss albino mice​
    Not stated​
    ∼20 μg/kg/day​
    Oral​
    Significantly elevated levels of Al in brain, kidney and liver.​
    Pzh:SFIS mice​
    Not stated​
    1.0 mg every 2 weeks or 0.1 mg 5 days/week​
    i.p.​
    Significantly elevated levels of Al in liver and tibia (bone), but not in brain.​
    Fiejka et al., 1996​
    The potential for aluminum injections to induce macrophagic myofasciitis has also been noted in the literature [20–22].
    A previous publication looked at the potential neurotoxicity of several known or suspected vaccine adjuvants [8]. In the current study, we will focus exclusively on the impact of aluminum hydroxide injections on motor and cognitive behaviours and on the expression of different forms of neuropathology in an in vivo mouse model.
    Go to:
    2. Experimental procedures

    2.1. Experimental animals

    In our initial study [8], young adult (3 month old) CD-1 male mice were used (approx. 35 g at experiment onset). Younger animals were deliberately chosen to mimic the typical age of service during the Gulf War [3]. Four subcutaneous injection groups (two injections spaced 2 weeks apart) were used: control saline/phosphate buffered solution (PBS) (n = 10); aluminum hydroxide (n = 11); squalene (n = 10); and aluminum hydroxide and squalene (n = 10). The current study will report only on the aluminum treated and control groups from this experimental series. A second series of experiments was conducted on 9 month old CD-1 males that received six aluminum hydroxide injections over a 2 weeks period. These mice, along with controls and other treatment groups (to be reported elsewhere), were subjected to a more rigorous behavioural testing regime to be described below. Histological analyses of the spinal cords and brains of these mice are in progress.
    All animals in both experiments were singly caged at the Jack Bell Research Centre animal care facility in Vancouver, B.C., Canada. An ambient temperature of 22 °C and a 12/12 h light cycle were maintained throughout the experiment. All mice were fed Purina® mouse chow and given access to both food and water ad libitum.
    Mice from both studies were sacrificed with an overdose of halothane and transcardially perfused with 4% paraformaldehyde (PFA). CNS tissues were collected for histological examination. Fixed brains and spinal cords from all mice were transferred to a 30% sucrose/PBS solution overnight and then frozen and stored at −80 °C until sectioning. All brain/cord tissue blocks were mounted in Tissue-Tek optimum cutting temperature (O.C.T) compound (Sakura, Zoeterwoude, Netherlands), and then sectioned by cryostat into 30 μm coronal slices. Spinal cords were sectioned at 25 μm in the transverse plane. The sections were cryoprotected in 30% ethylene glycol–20% glycerol–dibasic and monobasic sodium phosphate solution and kept frozen at −20 °C until use.
    2.2. Adjuvants

    Alhydrogel®, an aluminum hydroxide (Al(OH)3) gel suspension, was used as a source of aluminum hydroxide. Alhydrogel is manufactured by Superfos Biosector a/s (Denmark) and was purchased from SIGMA Canada.

    2.2.1. Doses

    To calculate approximate human dosages of aluminum hydroxide for our experiments, we used the following information: The AVA vaccine for human use is made by Bioport Corporation, of Lansing, Michigan. According to product data sheets from the Michigan Biologic Products Institute (MBPI, Lansing, Michigan, USA; Bioport's predecessor), a single dose of AVA vaccine contains 2.4 mg of aluminum hydroxide (equivalent to 0.83 mg aluminum). Based on an assumed average human body weight of 70–80 kg, the amount per kg body weight would be approximately 30–34 μg/kg. Soldiers or civilians receiving the vaccine would have received between 30–34 μg/kg (1 injection) and up to approx. 200 μg/kg if six injections were received.
    The adjuvant injections in the treated mice were calibrated based on average animal weight for both experiments. At 3-month-old male CD-1 mice weigh approx. 35 g; at 9 months, the weight is approx. 50 g. In Experiment 1, we performed two injections of a suspension of aluminum hydroxide of (50 μg/kg) in a total volume of 200 μL sterile PBS (0.9%) spaced 2 weeks apart. The mice in this experiment would therefore have received 100 μg/kg versus a probable 68 μg/kg in humans. In Experiment 2, mice received six injections for a total of 300 μg/kg aluminum hydroxide over 2 weeks. Controls in both studies were injected with 200 μL PBS.
    The injection site for human administration is typically subcutaneous over the deltoid muscle. For injections in mice we used a subcutaneous injection into the loose skin behind the neck (the “scruff”) to minimize discomfort and for ease of injection.
    2.3. Behavioural tests

    In the first study, mice were subjected at regular intervals to specific behavioral tests of motor and cognitive function, including wire mesh hang (2×/week), open field (1×/week), and water maze (1×/week) over a 6 months post injection period (see [22]). The order in which the animals were tested was randomized for each trial. In the second study, we conducted a more detailed behavioural examination based on the automated EthoVision system (Noldus Information Technology, Seattle, WA) employing a video camera and tracking software (Noldus EthoVision® 3.1). Individual movements of the mice were tracked for 5 min in an open field at weekly intervals. The software allowed for quantitative measurements of a variety of motor functions, including distance moved, percentage of time moving, velocity, and a variety of others. These latter experiments continued for 28 weeks following the last injections.
    2.4. Histological measurements (Experiment 1)


    2.4.1. NeuN and active caspase-3

    As cited in Petrik et al. [8], five mice were used from each treatment group. In each, multiple brain (n = 3) and spinal cord (n = 8) sections at different levels were examined. Fluorescent intensity levels of NeuN and activated caspase-3 were used to identify neurons and cells dying by apoptosis, respectively. Regions of interest were defined using landmarks from mouse brain and spinal cord stereotaxic atlases [23,24]. All sections were counted in an unbiased manner under a 40× objective.

    2.4.2. Choline acetyltransferase (ChAT) and Glial fibrillary acidic protein (GFAP)

    As cited in Petrik et al. [8], the ChAT antibody was used to identify cholinergic motor neurons in the brain and spinal cord [25,26]. GFAP was used to label reactive astrocytes [27,28].

    2.4.3. Iba-1

    A rabbit polyclonal antibody against the ionized calcium binding adapter molecule (Iba-1) (Wako, Richmond, VA, USA) was used to stain for activated microglia [29]. For Iba-1 fluorescent immunolableling, staining followed the same protocol used for GFAP labeling except for the following modification: Sections were incubated with primary rabbit-anit-Iba-1 (in PBST with 1%NGS + 1%BSA; 1:1000 dilution) overnight at 4 °C. Sections were then incubated in anti-rabbit AlexaFluor 546™ secondary antibody for 2 h at room temperature (Molecular Probes; Eugene, OR, 1:200).

    2.4.4. Morin (3,5,7,2′,4′-pentahydroxyflavone, BDH)

    Morin (M4008-2G, Sigma) is a fluorochrome which forms a fluorescent complex with aluminum fluorescing green (with an excitation wavelength of 420 nm) [15,30] when it does so. The aluminum-Morin fluorescence assay was used for the visualization and detection of aluminum in lumbar spinal cord and other CNS tissues in the present experiments. The Morin stain was used as a 0.2% solution in 85% ethyl alcohol containing 0.5% acetic acid. All mounted sections were first washed with PBS twice for 5 min. Sections were then pretreated for 10 min in a 1% aqueous solution of hydrochloric acid, rinsed in double distilled water (ddH2O) twice for 5 min, and immersed in 0.2% Morin stain for 10 min. The sections were then washed in ddH2O twice for 5 min, dehydrated in 70%, 90%, and 100% ethyl alcohol (EtOH), and cleared with 100% xylene. All sections were then mounted using Vectashield mounting medium (Vector Laboratories), sealed with clear nail polish, and allowed to air dry.

    2.4.5. Staining for hyper-phosphorylated tau protein

    Hyper-phosphorylated tau (Anti-Human PHF-Tau, Pierce Biotechnology, Inc., Rockford, IL) labeling was determined using the non-fluorescent diaminobenzidine (DAB) method. Slides containing mounted sections of lumbar spinal cord were first rinsed twice PBS (2× 5 min) before performing antigen unmasking. Endogenous peroxidase activity was quenched using 0.3% hydrogen peroxide in methanol for 20 min. The sections were rinsed twice in PBS (2× 5 min) before blocking at room temperature for 1 h in M.O.M. blocking reagent (M.O.M. Kit – peroxidase, cat # PK 2200, Vector Laboratoraties, Inc., Burlingame CA) followed by a quick rinse in PBS and a 5 min incubation in M.O.M. diluent solution. The primary PHF-Tau antibody was diluted 100× in M.O.M. diluent solution and incubation was conducted at room temperature for 1 h. After the primary antibody incubation step, the slides were rinsed twice in PBS, and then incubated in the M.O.M. biotinylated anti-mouse IgG reagent for 10 min. The sections were rinsed in PBS before incubating with the secondary antibody (Vectastain ABC Elite Kit, cat # PK-6101) for 1 h at room temperature followed by incubation in the Vectorstain ABC Elite Reagents for another 30 min. The slides were rinsed again in 1× PBS. Color development was achieved using the Vector ImmPACT™ DAB solution (cat # SK-4105). When the desired color was achieved, the slides were rinsed in ddH2O for 5 min and counter-stained in 0.1% methyl green for 5 min. After counter-staining, the slides were rinsed briefly in ddH2O, two changes of 95% ethanol and two changes of 100% ethanol. The slides were allowed to dry before they were mounted in Permount® (Fisher Scientific, Fair Lawn, NJ).
    2.5. Microscopy

    Brain and spinal cord sections processed with fluorescent antibodies or DAB were viewed with a Zeiss Axiovert 200 M (Carl Zeiss Canada Limited, Toronto, ON, Canada) microscope at 40× and 100× (under oil) magnification. DAPI (blue fluorescence) was viewed with a 359/461 nm absorption/emission filter. Alexa Fluor 546™ (red), and rabbit IgG DuoLuX™ (red) were viewed with 556 557/572 573 nm filter. FITC was viewed with a 490 494/520 525 nm filter. Brain and lumbar spinal cord sections for histology were chosen randomly for each group. When counting using 40× magnification two images were captured per spinal cord section: ventral left, ventral right. 40× images were 350 × 275 μm and 100× images were 50 × 115 μm. Images were captured using AxioVision 4.3 software.
    2.6. Criteria for determination and quantification of labeled cells

    For quantification, only cells that were in focus and completely within the field of view were counted. To eliminate the likelihood that the same cell would be counted twice, slices for each histological experiment were drawn from only one well of the collection dish to ensure that sections were at least 250 μm apart. Regions of interest for cell counts were defined using landmarks and reference points from mouse spinal cord and brain stereotaxic atlases [39,40]. In the spinal cord, only cells which were anterior to the central canal and deep apex where the grey and white matters meet were considered as part of the ventral horns; conversely, only cells which were posterior to the central canal and the posterior deep apex were considered as part of the dorsal horns. These criteria applied regardless of the spinal segments examined. In the brain, only cells found within the corresponding brain structures were counted. All sections were counted in an unbiased manner (a code key was assigned to the animals for tracking purposes, but did not reveal the identity of treatment the animal was prescribed).
    2.7. Statistics

    Values for each mouse on the individual tasks and in the cell counts were used to calculate mean ± S.E.M. for each group and condition. Behavioral scores and cell counts were normalized to the mean value of controls. The means were compared using one- or two-way ANOVA (Statistica, Statsoft Inc., Tulsa, OK; GraphPad Prism, San Diego, CA).
    Go to:
    3. Results

    Unlike the Petrik et al. [8] study which showed a loss of ChAT positive motor neurons in the lumbar cord of aluminum hydroxide treated mice, there was no significant difference in ChAT labeling or motor neuron counts in either the cervical or thoracic spinal cord segments (Fig. 1A and B). However, the aluminum injected group showed a highly significant increase in the expression of GFAP positive astrocytes (70%) are the control group (listed as 100% for all graphs; Fig. 1C) in the cervical segment of spinal cord. These GFAP results mirrored the outcomes previously reported in lumbar cord.

    nihms171746f1.
    Open in a separate window

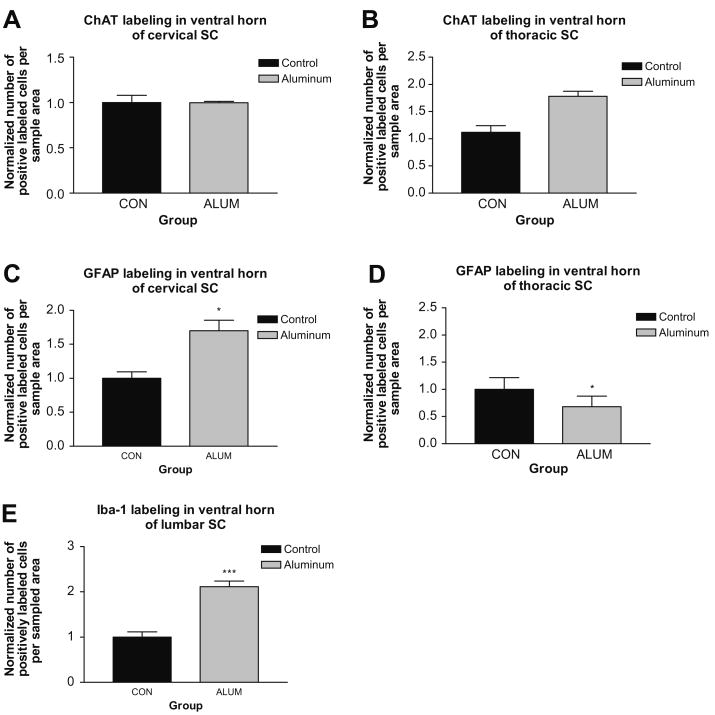

    Fig. 1
    Impact of aluminum hydroxide on different levels of spinal cord (SC). (A and B) ChAT labeling in cervical and thoracic cords, respectively. (C and D) Normalized cell counts for GFAP labeling of reactive astrocytes in cervical and thoracic spinal cord, respectively. In cervical cord, the aluminum hydroxide treated groups showed higher levels of GFAP labeling with the aluminum alone group achieving statistical significance. (E) Iba-1 fluorescent labeling in the ventral horn of mouse lumbar cord showed that aluminum-injected mice had significantly increased numbers of activated microglia. Data are means ± S.E.M. ***p < 0.001, one-way ANOVA.
    Iba-1 labeling demonstrated significantly increased levels of actived microglia in the lumbar spinal cord of animals injected with aluminum (111%) compared to controls (Fig. 1E). Other levels of cord were not tested for microglia in the present study.
    Only mice injected with aluminum hydroxide showed significantly increased Morin labeling of cells in lumbar spinal cord compared to the other groups (Fig. 2A–E). Similarly, only aluminum-injected mice showed the presence of abnormal tau protein in motor neurons in lumbar cord (Fig. 3). Other regions of the cord were not tested in the current studies for either Morin or tau protein.
    nihms171746f2.

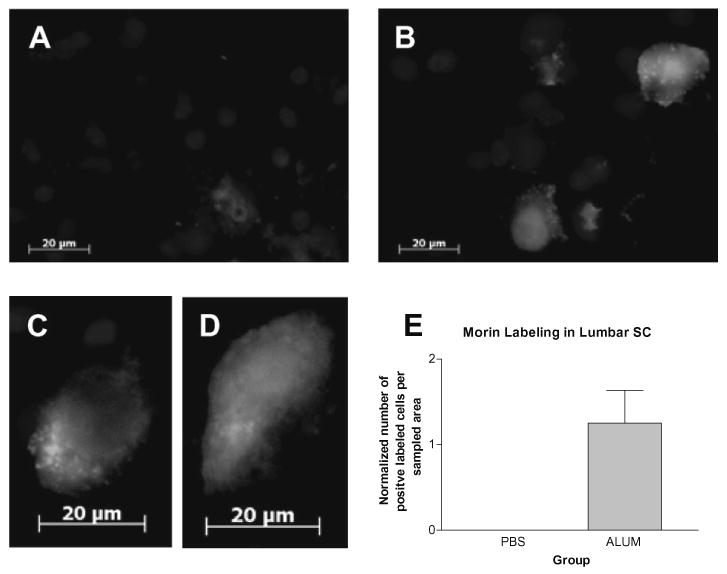

    Fig. 2
    Morin fluorescent labeling in ventral horn of mouse lumbar spinal cord. Sections from control (A) mice showed no Morin fluorescent labeling. Scale bar = 20 μm. (B) Morin-positive motor neurons in aluminum hydroxide treated mice. (C and D) Higher power of motor neurons in aluminum-injected mice showing show high levels of cytoplasmic Morin labeling. Scale bar = 20 μm. (E) Cell counts for Morin positive cells in the different treatment groups (n = 4 mice/group, four sections each). Data are mean ± S.E.M. One-way ANOVA analysis revealed a significance level of *p < 0.05.
    nihms171746f3.
    Fig. 3
    Hyper-phosphorylated tau immunostaining in the ventral horn of mouse lumbar spinal cord compared to Alzheimer's disease. (A) A section of human entorhinal cortex from a control patient. (B) Human entorhinal cortex section from a patient with Alzheimer's disease (sections kindly provided courtesy of Dr. P. McGeer). (C) Lumbar spinal cord sample from a saline injected mouse. (D) Equivalent section from a aluminum hydroxide injected mouse. All pictures are 100× magnification.
    The multiple aluminum hydroxide injections of experiment 2 showed profound effects on motor and other behaviours as shown in Figs. 4 and and5.5. Multiple aluminum injections produced significant behavioural outcomes including changes in locomotive behaviour, (Fig. 4) and induced memory deficits on water maze tasks (Fig. 5). Other behavioural measures including muscle strength and endurance as measured by the wire hang and motor coordination and balance as measured by rotarod were not significantly affected.

    nihms171746f4.
    Open in a separate window

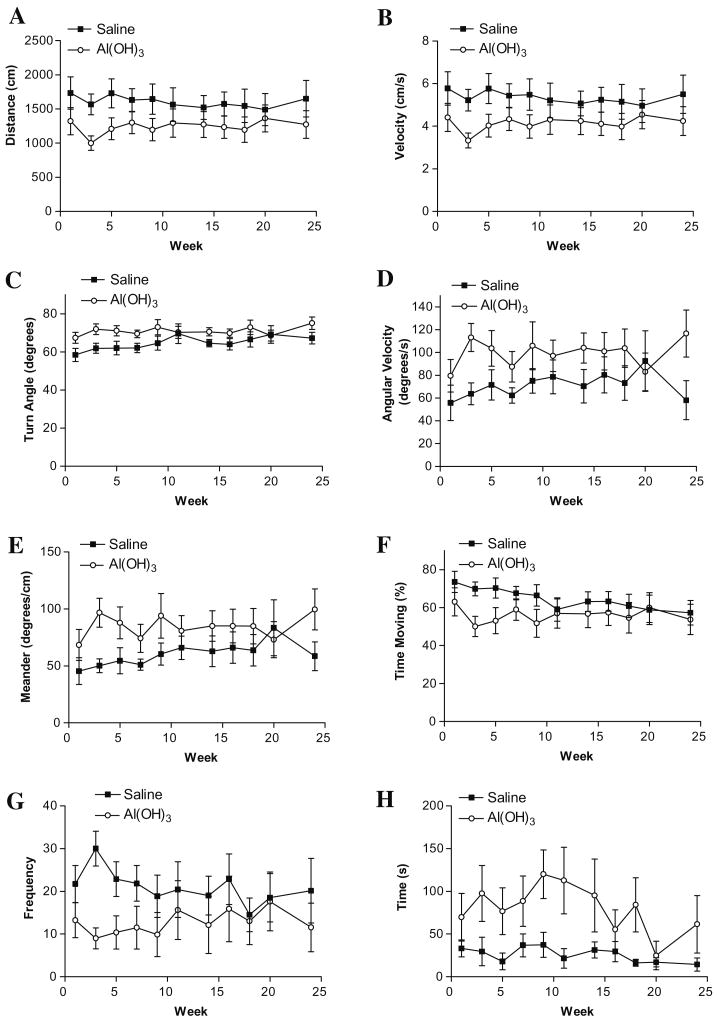

    Fig. 4
    Open field movement analysis as an assessment of spontaneous activity and anxiety in control mice vs. mice injected six times with aluminum hydroxide. Aluminum hydroxide injected mice showed the following behavioural changes: (A) Shorter distances moved (***p < 0.0001). (B) Slower movement (***p < 0.0001). (C) Greater mean turn angle (***p < 0.0001). (D) More rapid turning (***p < 0.0001). (E) Greater meander (***p < 0.0001). (F) Smaller percentage of time in overall movement (**p = 0.0030). (G) Fewer entries into the centre of the open field (***p < 0.001). Late entry into centre (***p < 0.0001). (All measures, two-way ANOVA).

    nihms171746f5.
    Open in a separate window

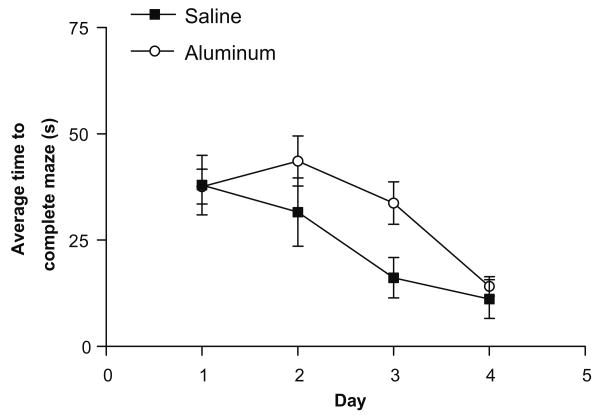

    Fig. 5
    Water maze test as an evaluation of learning and memory. Mice injected 6× with aluminum hydroxide on average took significantly longer to complete the maze compared to saline injected mice (two-way ANOVA. *p = 0.0389).
    Go to:
    4. Discussion

    The current results extend the preliminary results reported by Petrik et al. [8] by showing that microglial activation is part of the underlying pathology in the lumbar cord. These data add to those previously reported, i.e., the loss of motor and other neurons and the activation of reactive astrocytes. Taken together with the current data, the overall activation of a glial inflammatory response in lumbar cord suggests that this process is a key early stage of the pathological events leading to motor neuron death. This interpretation is supported by an absence of motor neuron loss and astrocyte activation in the other levels of the spinal cord observed in the present study. In ALS and in animal models of the disease, glial activation followed by motor neuron death often appears to proceed in sequential manner along the ventral neuraxis with the first signs of pathology appearing first in lumbar cord [31]. Given this, it seems possible that an examination of later time points would show pathological responses in the thoracic and cervical cord as well. Alternatively, the aluminum shown to be present in lumbar cord motor neurons may not have reached these other spinal cord segments. Studies now in progress will determine if motor neurons in these other segments stain positively for aluminum.
    The positive Morin staining in lumbar cord clearly demonstrates that post injection aluminum finds entry into this part of the nervous system. One possibility is that it does so by retrograde transport from muscles to motor neurons in particular segments. This seems unlikely given that our paradigm of injecting subcutaneous should not have targeted any particular spinal cord segment. Another possibility is that aluminum can enter the CNS in a systemic manner if it enters the circulatory system. Experiments in progress are designed to distinguish between these possibilities.
    The presence of hyper-phosphorylated tau protein, one of the hallmarks of both Alzheimer's disease and ALS–PDC of Guam, in motor neurons in lumbar spinal cord clearly suggests that additional pathological processes associated with aluminum are occurring.
    The behavioural outcomes in the second experiment reported here reinforce the pathological outcomes seen in the first studies. While the histological measurements from these studies are still pending, the extent of the behavioural deficits strongly suggests that we will observe widespread neuronal pathologies. The greater extent of the behavioural outcomes in this experiment may be related to the experimental paradigm that tripled the number of aluminum hydroxide injections.
    Overall, the results reported here mirror previous work that has clearly demonstrated that aluminum, in both oral and injected forms, can be neurotoxic [15,16,32,33]. Potential toxic mechanisms of action for aluminum may include enhancement of inflammation (i.e., microgliosis) and the interference with cholinergic projections [34], reduced glucose utilization [33], defective phosphorylation-dephosphorylation reactions [35], altered rate of transmembrane diffusion and selective changes in saturable transport systems in the blood brain barrier (BBB [36], and oxidative damage on cellular processes by the inhibition of the glutathione redox cycle [37].
    Given the above, it is not surprising that aluminum has been widely proposed as a factor in neurodegenerative diseases and has been found in association with degenerating neurons in specific CNS regions [38–41]. In animal studies, aluminum has been linked to the accumulation of tau protein and amyloid-beta protein and observed to induce neuronal apoptosis in vivo as well as in vitro30. Aluminum injected animals show severe anterograde degeneration of cholinergic terminals in cortex and hippocampus [42].
    Aluminum in its adjuvant form can gain access to the CNS [42–44], however, oral administration of aluminum hydroxide gel does not appear to be neurotoxic in humans [45], although aluminum chloride is, in rats [46]. The route of exposure, and perhaps the form of aluminum, may be important factors that determine the potential for toxicity.
    We speculate that the observed neurotoxic effects of aluminum hydroxide in the present study arise by both ‘direct’ and ‘indirect’ pathways, some of which are cited above. Direct toxicity refers to the physical presence (or close proximity) of aluminum and its potential for initiating cell death pathways. Accumulation of aluminum into the cytoplasm via cellular uptake mechanisms or diffusion could cause alterations in glutaminase and glutamine synthetase and easily alter the availability of the neurotransmitter glutamate [47]. Aluminum acting to induce abnormal tau protein accumulation could also increase neurofibrillary tangles and impair cellular transport mechanisms [48]. Outside the cell, aluminum could affect neurons by altering synapses. For example, aluminum has been shown to decrease the thickness of post-synaptic density, increase the width of the synaptic cleft, and increase the number of flat synapses [49]. Aluminum could also block voltage-activated calcium channels [50], augment the activity of acetylcholinesterase [51], or interfere with synaptic transmission by merely accumulating in the synaptic cleft [52]. Aluminum can also induce apoptosis in astrocytes [53]. Since astrocytes are essential for maintaining neuronal health, any loss of astrocyte function could prove toxic to neurons. Indirect toxicity of aluminum could occur in various ways, including by activating various cytokines [54], releasing glutamate in an excitotoxic cascade, or by modifying various enzymatic pathways [55].
    In addition to the above actions specifically on neural cells, aluminum might act indirectly by stimulating abnormal, generalized immune responses. This is, in fact, what adjuvants are placed in vaccines to do in the first place. Adjuvant neurotoxicity could thus be the result of an imbalanced immune response. Rook and Zumla [56] hypothesized that multiple vaccinations, stress, and the method of vaccination could lead to a shift in immune response [56,57]. Aluminum hydroxide has previously been shown to stimulate a Th2-cytokine response [9,58].
    While the current results and our previous study have demonstrated significant behavioural and neuropathological outcomes with aluminum hydroxide and some additionally significant outcomes due to a combination of adjuvants, it is important to recognize that these were achieved under minimal conditions. Table 1 summarizes aspects of human ALS and GWS symptoms compared with outcomes observed in aluminum-injected mice. The likelihood exists that a synergistic effect between adjuvants and other variables such as stress, multiple vaccinations, and exposure to other toxins likely occurs. A recent study examining some of these factors in combination showed that stress, vaccination, and pyridostigmine bromide (a carbamate anticholinesterase (AchE) inhibitor), may synergistically act on multiples stress-activated kinases in the brain to induce neurological impairments in GWS [59]. In addition, a genetic background in context to aluminum exposure may play a crucial role and may be an important area for future research.
    The demonstration of neuropathological outcomes and behavioural deficits in aluminum hydroxide injected mice may provide some insight into the causes of not only GWS–ALS, but may open avenues of investigation into other neurological diseases.
    Go to:
    Acknowledgments

    This work was supported by grants from the Scottish Rite Charitable Foundation of Canada and the Natural Science and Engineering Research Council of Canada (to CAS). We thank Dr. Meryl Nass (Mount Desert Island Hospital, Maine, USA) and Lt. Col. John A. Richardson (USAFR, ret.) for their invaluable comments and advisory contributions to this project and manuscript.
    Go to:
    Abbreviations

    chE
    Anticholinesterase
    ALS–PDC
    Amyotrophic lateral sclerosis- parkinsonism dementia complex
    AVA
    Anthrax vaccine adsorbed
    BSA
    Bovine serum albumin
    GFAP
    Glial fibrillary acidic protein
    ChAT
    Choline acetyltransferase
    GWS
    Gulf War Syndrome
    NGS
    normal goat serum
    OCT
    Optimum cutting temperature
    PBST
    Phosphate buffer saline – Tween 20
    PFA
    Paraformaldehyde
    Go to:
    Footnotes


    Animal ethics approval: Protocols governing the use of animals were approved by review committees of the University of British Columbia and were in compliance with guidelines published by the Canadian Council on Animal Care and are in accordance with the international guidelines including the NIH Guide for the Care and Use of Laboratory Animals, as well as the EEC Council Directive.


    Conflict of interest: None of the authors have received any grants or funding from Bioport, Chiron, Corixa, nor any other pharmaceutical companies named in this article.

    Go to:
    References

    1. Charatan F. BMJ. 2002;324:65. [PMC free article] [PubMed] [Google Scholar]
    2. Horner RD, Kamins KG, Feussner JR, Grambow SC, Hoff-Lindquist J, Harati Y, Mitsumoto H, Pascuzzi R, Spencer PS, Tim R, Howard D, Smith TC, Ryan MA, Coffman CJ, Kasarskis EJ. Neurology. 2003;61:742–749. [PubMed] [Google Scholar]
    3. Haley RW. Neurology. 2003;61:750–756. [PubMed] [Google Scholar]
    4. Weisskopf MG, O'Reilly EJ, McCullough ML, Calle EE, Thun MJ, Cudkowicz M, Ascherio A. Neurology. 2005;64:32–37. [PubMed] [Google Scholar]
    5. Kurland LT. Trends Neurosci. 1988;11:51–54. [PubMed] [Google Scholar]
    6. Whiting MG. Econ Bot. 1963;17:271–302. [Google Scholar]
    7. Garruto RM, Shankar SK, Yanagihara R, Salazar AM, Amyx HL, Gajdusek DC. Acta Neuropathol Berl. 1989;78:210–219. [PubMed] [Google Scholar]
    8. Petrik MS, Wong MC, Tabata RC, Garry RF, Shaw CA. Neuromol Med. 2007;9:83–100. [PubMed] [Google Scholar]
    9. Brewer JM, Conacher M, Hunter CA, Mohrs M, Brombacher F, Alexander J. J Immunol. 1999;163:6448–6454. [PubMed] [Google Scholar]
    10. Lindblad EB. Vaccine. 2004;22:3658–3668. [PubMed] [Google Scholar]
    11. Baylor NW, Egan W, Richman P. Vaccine. 2002;20(Suppl 3):S18–S23. [PubMed] [Google Scholar]
    12. Kanra G, Viviani S, Yurdakok K, Ozmert E, Anemona A, Yalcin S, Demiralp O, Bilgili N, Kara A, Cengiz AB, Mutlu B, Baldini A, Marchetti E, Podda A. Pediatr Int. 2003;45:314–318. [PubMed] [Google Scholar]
    13. Jefferson T, Rudin M, Di Pietrantonj C. Lancet Infect Dis. 2004;4:84–90. [PubMed] [Google Scholar]
    14. Lindblad EB. Immunol Cell Biol. 2004;82:497–505. [PubMed] [Google Scholar]
    15. Crapper DR, Krishnan SS, Dalton AJ. Science. 1973;180:511–513. [PubMed] [Google Scholar]
    16. Kawahara M, Kato M, Kuroda Y. Brain Res Bull. 2001;55:211–217. [PubMed] [Google Scholar]
    17. Garruto RM, Yanagihara R, Gajdusek DC. Neurology. 1985;35:193–198. [PubMed] [Google Scholar]
    18. Wagner-Recio M, Toews AD, Morell P. J Neurochem. 1991;57:1891–1901. [PubMed] [Google Scholar]
    19. Bilkei-Gorzo A. Food Chem Toxicol. 1993;31:357–361. [PubMed] [Google Scholar]
    20. Verdier F, Burnett R, Michelet-Habchi C, Moretto P, Fievet-Groyne F, Sauzet E. Vaccine. 2005;23:1359–1367. [PubMed] [Google Scholar]
    21. Kalil RK, Monteiro A, Jr, Lima MI, Silveira EB, Foltran FS, Martins CE, Rizzo IM. Ultrastrct Pathol. 2007;31:45–50. [PubMed] [Google Scholar]
    22. Exley C, Swarbrick L, Gherardi RK, Authier FJ. Med Hypotheses. 2009;72:135–139. [PubMed] [Google Scholar]
    23. Sidman RL, Angevine JB, Jr, Pierce ET. Atlas of the Mouse Brain and Spinal Cord. Harvard University Press; Massachusetts: 1971. [Google Scholar]
    24. Paxinos G, Franklin KBJ. The Mouse Brain in Stereotaxic Coordinates. second. Academic Press; San Diego: 2001. [Google Scholar]
    25. Wetts R, Vaughn JE. Exp Neurol. 1996;141:248–255. [PubMed] [Google Scholar]
    26. Maatkamp A, Vlug A, Haasdijk E, Troost D, French PJ, Jaarsma D. Eur J Neurosci. 2004;20:14–28. [PubMed] [Google Scholar]
    27. Lee VM, Page CD, Wu HL, Schlaepfer WW. J Neurochem. 1984;42:25–32. [PubMed] [Google Scholar]
    28. Tohyama T, Lee VM, Rorke LB, Trojanowski JQ. J Comp Neurol. 1991;310:285–299. [PubMed] [Google Scholar]
    29. Imai Y, Ibata I, Ito D, Ohsawa K, Kohsaka S. Biochem Biophys Res Commun. 1996;224:855–862. [PubMed] [Google Scholar]
    30. De Boni U, Scott JW, Crapper DR. Histochemistry. 1974;40:31–37. [PubMed] [Google Scholar]
    31. Tabata RC, Wilson JMB, Ly P, Zwiegers P, Kwok D, Van Kampen JM, Cashman N, Shaw CA. Neuromol Med. 2008;10:24–39. [PMC free article] [PubMed] [Google Scholar]
    32. Banks WA, Kastin AJ. Neurosci Biobehav Rev. 1989;13:47–53. [PubMed] [Google Scholar]
    33. Joshi JG. Biofactors. 1990;2:163–169. [PubMed] [Google Scholar]
    34. Platt B, Fiddler G, Riedel G, Henderson Z. Brain Res Bull. 2001;55:257–267. [PubMed] [Google Scholar]
    35. Cordeiro JM, Silva VS, Oliveira CR, Goncalves PP. J Inorg Biochem. 2003;97:132–142. [PubMed] [Google Scholar]
    36. Kaya M, Kalayci R, Arican N, Kucuk M, Elmas I. Biol Trace Elem Res. 2003;92:221–230. [PubMed] [Google Scholar]
    37. Murakami NJ. J Neurol. 1999;256(Suppl 2):II16–II18. [PubMed] [Google Scholar]
    38. Perl DP, Gajdusek DC, Garruto RM, Yanagihara RT, Gibbs CJ. Science. 1982;217:1053–1055. [PubMed] [Google Scholar]
    39. Perl DP, Penderbury WW. Can J Neurol Sci. 1986;13:441–445. [PubMed] [Google Scholar]
    40. Rao JK, Katsetos CD, Herman MM, Savory J. Clin Lab Med. 1998;18:687–698. [PubMed] [Google Scholar]
    41. Savory J, Garruto RM. Nutrition. 1998;14:313–314. [PubMed] [Google Scholar]
    42. Wen GY, Wisniewski HM. Acta Neuropathol (Berl) 1985;68:175–184. [PubMed] [Google Scholar]
    43. Redhead K, Quinlan GJ, Das RG, Gutteridge JM. Pharmacol Toxicol. 1992;70:278–280. [PubMed] [Google Scholar]
    44. Sahin G, Varol I, Temizer A, Benli K, Demirdamar R, Duru S. Biol Trace Elem Res. 1994;41:129–135. [PubMed] [Google Scholar]
    45. Rosati G, De Bastiani P, Gilli P, Paolino E. J Neurol. 1980;223:251–257. [PubMed] [Google Scholar]
    46. Walton JR. Neurosci Lett. 2007;412:29–33. [PubMed] [Google Scholar]
    47. Zielke HR, Jackson MJ, Tildon JT, Max SR. Mol Chem Neuropathol. 1993;19:219–233. [PubMed] [Google Scholar]
    48. Bizzi A, Crane RC, Autilio-Gambetti L, Gambetti P. J Neurosci. 1984;4:722–731. [PMC free article] [PubMed] [Google Scholar]
    49. Jing Y, Wang Z, Song Y. Synapse. 2004;15:292–298. [PubMed] [Google Scholar]
    50. Busselberg D, Platt B, Haas HL, Carpenter DO. Brain Res. 1993;622:163–168. [PubMed] [Google Scholar]
    51. Zatta P, Ibn-Lkhayat-Idrissi M, Zambenedetti P, Kilyen M, Kiss T. Brain Res Bull. 2002;59:41–45. [PubMed] [Google Scholar]
    52. Banin E, Meiri H. Brain Res. 1987;423:359–363. [PubMed] [Google Scholar]
    53. Aremu DA, Meshitsuka S. Brain Res. 2005;1031:284–296. [PubMed] [Google Scholar]
    54. Johnson VJ, Sharma RP. Neurotoxicity. 2003;24:261–268. [PubMed] [Google Scholar]
    55. Nayak P, Chatterjee AK. Food Chem Toxicol. 2001;39:1285–1289. [PubMed] [Google Scholar]
    56. Rook GA, Zumla A. Lancet. 1997;349:1831–1833. [PubMed] [Google Scholar]
    57. Rook GA, Zumla A. Hosp Med. 1998;59:10–11. [PubMed] [Google Scholar]
    58. Valensi JP, Carlson JR, Van Nest GA. J Immunol. 1994;153:4029–4039. [PubMed] [Google Scholar]
    59. Wang D, Perides G, Liu YF. J Neurochem. 2005;93:1010–1020. [PubMed] [Google Scholar]

    Formats:

    Share

    • 4047626. Facebook
    • 4047627. Twitter
    • 4047628. Google+
    Save items
    Add to FavoritesView more options
    Similar articles in PubMed
    See reviews...See all...
    Cited by other articles in PMC
    See all...
    Links
    Recent Activity
    ClearTurn Off
    See more...




    See links ...





    See more ...






    See more ...


    See more ...

    See more ...

    See more ...





    Support CenterSupport Center
    Simple NCBI Directory

    External link. Please review our privacy policy.
    NLM
    NIH
    DHHS
    USA.gov
    National Center for Biotechnology Information, U.S. National Library of Medicine8600 Rockville Pike, Bethesda MD, 20894 USA
    Policies and Guidelines | Contact

    CULCULCAN, Jul 15, 2021
    #4

Share This Page
