Walipini-a Warm Place: An Underground Greenhouse For Year Round Garden

AN UNDERGROUND GREENHOUSE FOR YEAR ROUND GARDEN

If eating Fresh Vegetables and Fruits Year Round is important to You
and Your Family, you might consider building an Underground Greenhouse.

It will keep the temperatures warmer in the Winter and help prevent overheating in the Summer; making it possible to grow your garden vegetables year round.

For the vast majority of the country, 4 feet below the surface
will stay between 50° to 60°F even if the weather above the ground
gets to 10°F or colder.

This is what they call the thermal constant, and what the Underground Greenhouse is based on.

The original design for an Underground Greenhouse was invented in Bolivia,
and was called a Walipini, an Aymara Indian word which means “a warm place.”

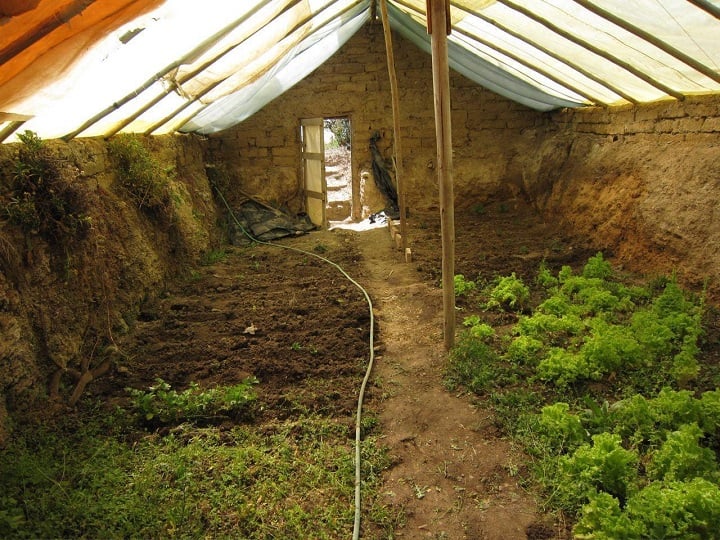

A Walipini is a rectangular shaped Greenhouse that is dug down 6-8 feet deep
in the ground.

The longest area of the rectangle will face towards the south (in the Northern Hemisphere) to take advantage of the most sunlight.

The design of the Underground Greenhouse isn’t that complicated,
as it can be as simple as a hole with plastic sheets laid on top.

The roof seals in the heat and insulates the area to keep a warm,
moist environment for your fruits and vegetables.

The location of your Walipini will depend on how big you want it to be.

You’ll need enough space to grow your plants and have a small area
to walk into your greenhouse.

The bottom of the Greenhouse will need to be at least 5 feet
above the water table in your area.

The recommended size for an Underground Greenhouse is 8 x 12 feet.

When planning where your Greenhouse will be located,
remember that your roof will need to receive light during the winter, also.

This means that you will have to make sure that trees
or buildings don't block it during the winter time when the sun is in the South.

In most cases, your Underground Greenhouse should be set up East to West,
with the roof facing South to take advantage of the Winter Sun.

Once it's decided where your Underground Greenhouse will be located,
you can start digging.

Plot out the area above ground to keep track of where you should be digging.

While you’re excavating, dig at least 2 feet deeper than your desired depth.

Keep your soil close by to help prop up the roof.

The walls of your Underground Greenhouse should have a minimum
6-inch slope from the roof to the floor.

This will greatly reduce the amount of crumbling and caving
that will occur with the soil. You can also layer the walls with a clay to prevent erosion, or use bricks to stabilize the walls of the building.

While you’re digging the hole, dig an extra 2 feet below the desired depth.

You’ll fill this area with stone or gravel and then 8 inches of soil.

Ideally, you’d lay larger stones and gravel on the bottom layer and the gravel
would become progressively smaller until you reach the soil.

The bottom of the greenhouse should be slightly sloped from the center to the edges.

Along the perimeter, you should leave a space of 2-3 feet just filled with gravel.

This is designed to help the water drain more easily.

Many people have also created open gravel wells in the corners
of the greenhouses that allows them to collect the water.

This will allow you to draw a bucket into the hole and pull out water
if you find you have too much.

Once the floor is filled in with the drainage system,
and the soil required for growing, the doors can be installed.

Place the door frame at the base of the ramp
and fill in the areas around the door as much as possible with dirt and clay.

Filling in these gaps will prevent heat loss in your greenhouse.

Many times, people will use 2-inch door frames that have holes drilled into the top middle and bottom of each side. They will then use wooden stakes, dowels or rebar to secure the door frame into the soil wall.

The angle of the roof will make a big difference on the sun’s ability
to heat your greenhouse. Ideally, the roof should be facing directly at the winter solstice at a 90 angle.

This angle will maximize the heat during the winter solstice
and minimize the heat during the summer solstice.
Now, you can use that extra soil that you have left over to create a berm.

The berm is basically an extension of the north wall of the greenhouse.

This allows you to control the angle of the roof by adding or taking away dirt.

Build up the berm to continue the slope that you used on the wall.

If you’re using bricks

– continue using them on the berm.

The most economical, durable material for your roof is 4-inch PVC pipe.

Using PVC elbow pieces, joiners, etc, you can create a flat roof frame that will cover your Underground Greenhouse.

After you’ve created a PVC frame, lay it in place on the top of your hole.

Then lay plastic sheeting across the top of the frame and make sure that it extends past the edge of the frame by at least 1 foot.

This flap will prevent run off water from the roof from running back into the greenhouse itself.

Once the plastic material is put on top of the roof frame, move inside and tack another layer of plastic wrap along the inside of the roof frame.

This internal plastic sheeting will create a 4-inch barrier between the inside
and outside of the roof, and will act as an insulator
that will keep the heat in more effectively.

You’ll want to make sure that you leave a few inches of plastic hanging down
on the lower (south) end of your roof.

This will force moisture that collects on the roof to drip off above
the drainage system or on top of your plants instead of at the base of the roof.

If you allow the moisture to run to the base of the roof frame,
it may affect the soil at that location and break down your wall, etc.

Ventilation is always crucial.
You have 3 options, such as: Installing two doors, one at each end;
installing a vent roughly the size of the door at the top of the back wall;
or installing a chimney at the center of the back wall.

Good Luck on your Greenhouse.
